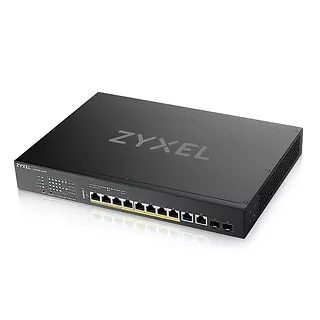

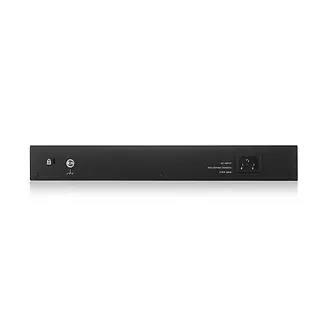

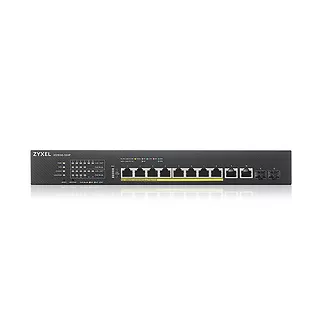

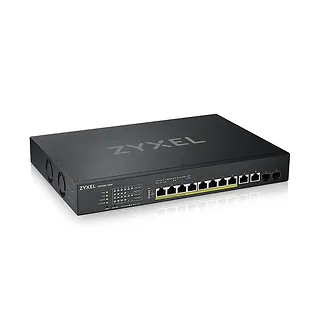

Zyxel XS1930-12HP Multi Gigabit Smar Managed PoE Switch 375W 802.3BT 2x10GbE + 2x SFP+ Uplink XS1930-12HP-ZZ0101F

Specyfikacje środowiskowe

• Temperatura -20 ° C do 50 ° C / -4 ° F do 122 ° F
• Wilgotność od 5% do 95% (bez kondensacji)

• (Szer. głęb.wys.) (Mm / cale): 330 x 230 x 44 / 12,99 x 9,06 x 1,73

• 100 - 240 V AC, 50/60 Hz

• Kabel zasilający
• Zestaw do montażu w stojaku

• Standalone management by Web
• interface
• Cloud management by Nebula
• Control Center*
• Management through Telnet
• Management through Web, SNMP
• Firmware upgrade by FTP/Web
• Configuration saving and retrieving
• Multiple login supported
• Configure clone
• DHCP relay per VLAN
• DHCP client IPv4*
• DHCP client IPv6
• DHCP option 82
• Daylight saving*
• NTP Server (IPv4/IPv6)
• Support DNS format
• Port mirroring*
• Scheduled PoE*
• PoE default consumption mode*
• PoE power management extended
• configuration*
• Web login warning page
• Restore to last custom default

• 802.1X*
• Port security*
• MAC authentication*
• Static MAC forwarding
• SSL
• Static ARP
• Policy-based security filtering

• No. of hardware queues per port: 8*
• 802.1p queuing methods: SPQ, WRR,
• WFQ*
• Storm control: broadcast, unknown
• L2MC, unknown unicast (DLF)*
• Rate limiting per port
• Policy-based rate limiting
• Policy-based prioritization

• IEEE 802.3z 1000BASE-X*
• IEEE 802.3ab 1000BASE-T Ethernet*
• IEEE 802.3an 10G BASE-T Ethernet*
• IEEE 802.3ae 10 Gbit/s Ethernet over
• fiber*
• IEEE 802.3af PoE*
• IEEE 802.3at PoE plus*
• IEEE 802.3bt (60 W) PoE over 4 pair*
• IEEE 802.3x flow control
• IEEE 802.3ad LACP aggregation*
• IEEE 802.1D Spanning Tree Protocol
• (STP)*
• IEEE 802.1w Rapid Spanning Tree
• Protocol (RSTP)*
• IEEE 802.1s Multiple Spanning Tree
• Protocol (MSTP)
• IEEE 802.1p Class of Service (CoS)
• prioritization*
• IEEE 802.1X port authentication*
