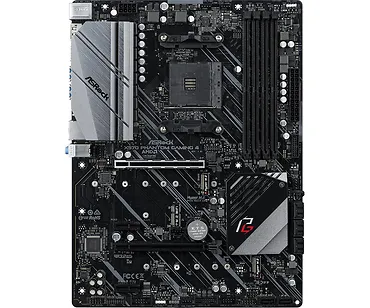

ASRock Płyta główna X570 Phantom Gaming 4 AM4 4DDR4 HDMI/DP M.2 ATX

Sterowniki, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

• Instrukcja użytkownika
• Płyta CD
• I/O Shield
• Kabel SATA x 2
• Montaż for M.2 x 3

30.5 cm x 22.9 cm

• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

Software

• ASRock Polychrome SYNC
• ASRock Key Master
• ASRock XFast LAN

UEFI

• ASRock Full HD UEFI
• ASRock Instant Flash
• ASRock Easy RAID Installer

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

• 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• ELNA Audio Caps
• PCB Isolate Shielding
• Individual PCB Layers for R/L Audio Channel

• Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• DirectX 12, Pixel Shader 5.0
• Shared memory default 2GB. Max Shared memory supports up to 16GB.
• Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
• Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
• Supports HDR (High Dynamic Range) with HDMI 2.0
• Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
• Supports Microsoft PlayReady

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)

AMD X570

X570 PHANTOM GAMING 4
