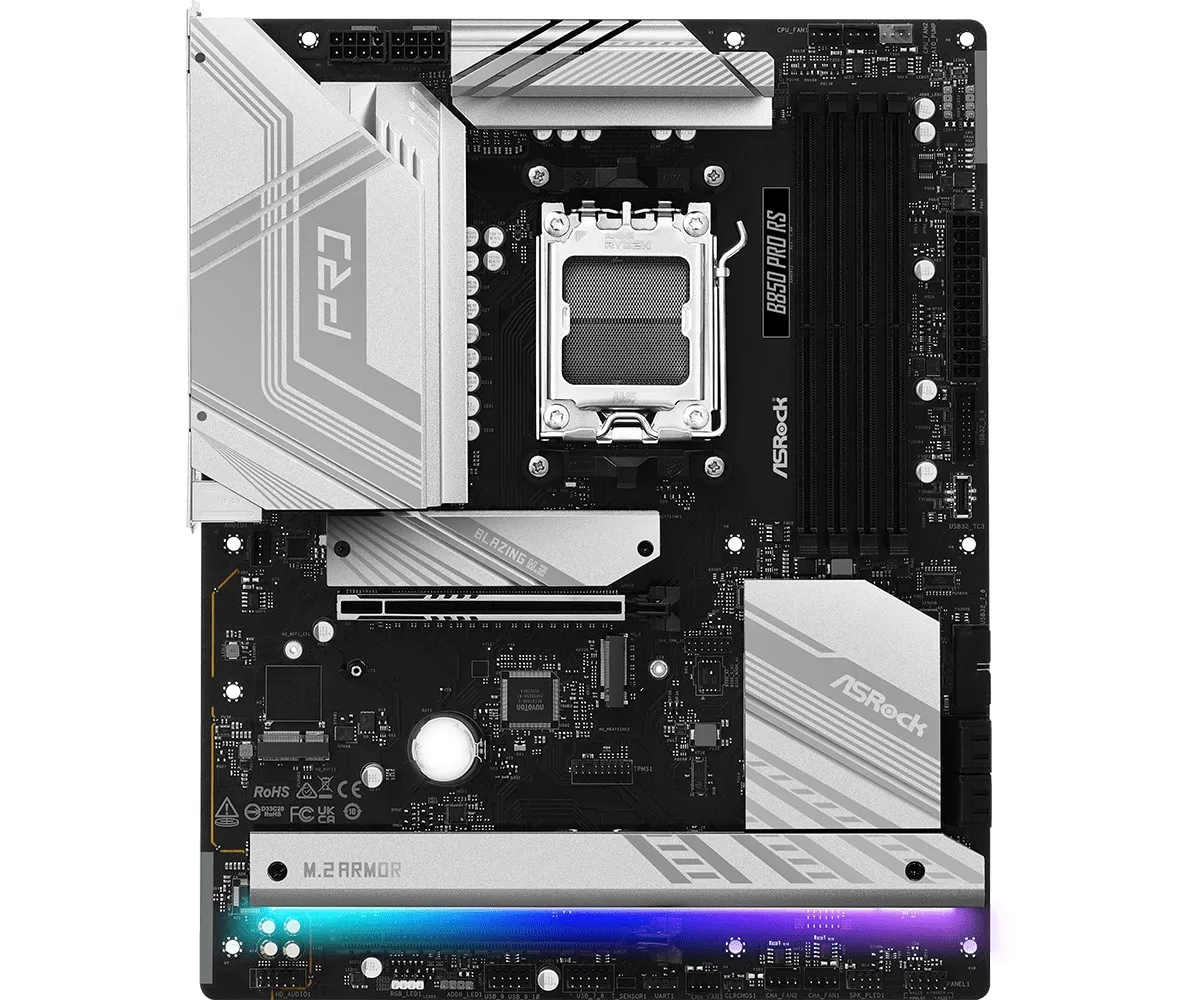

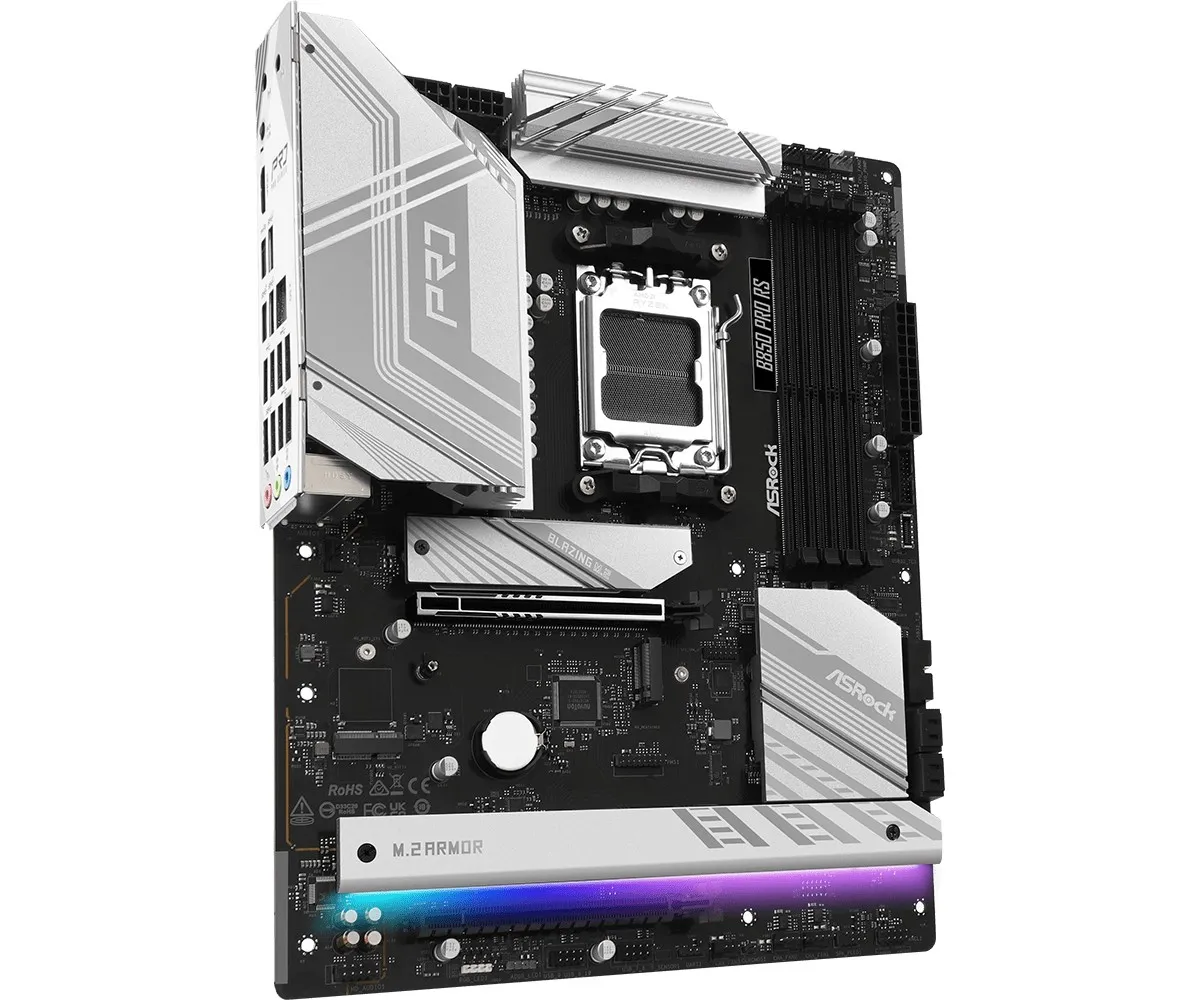

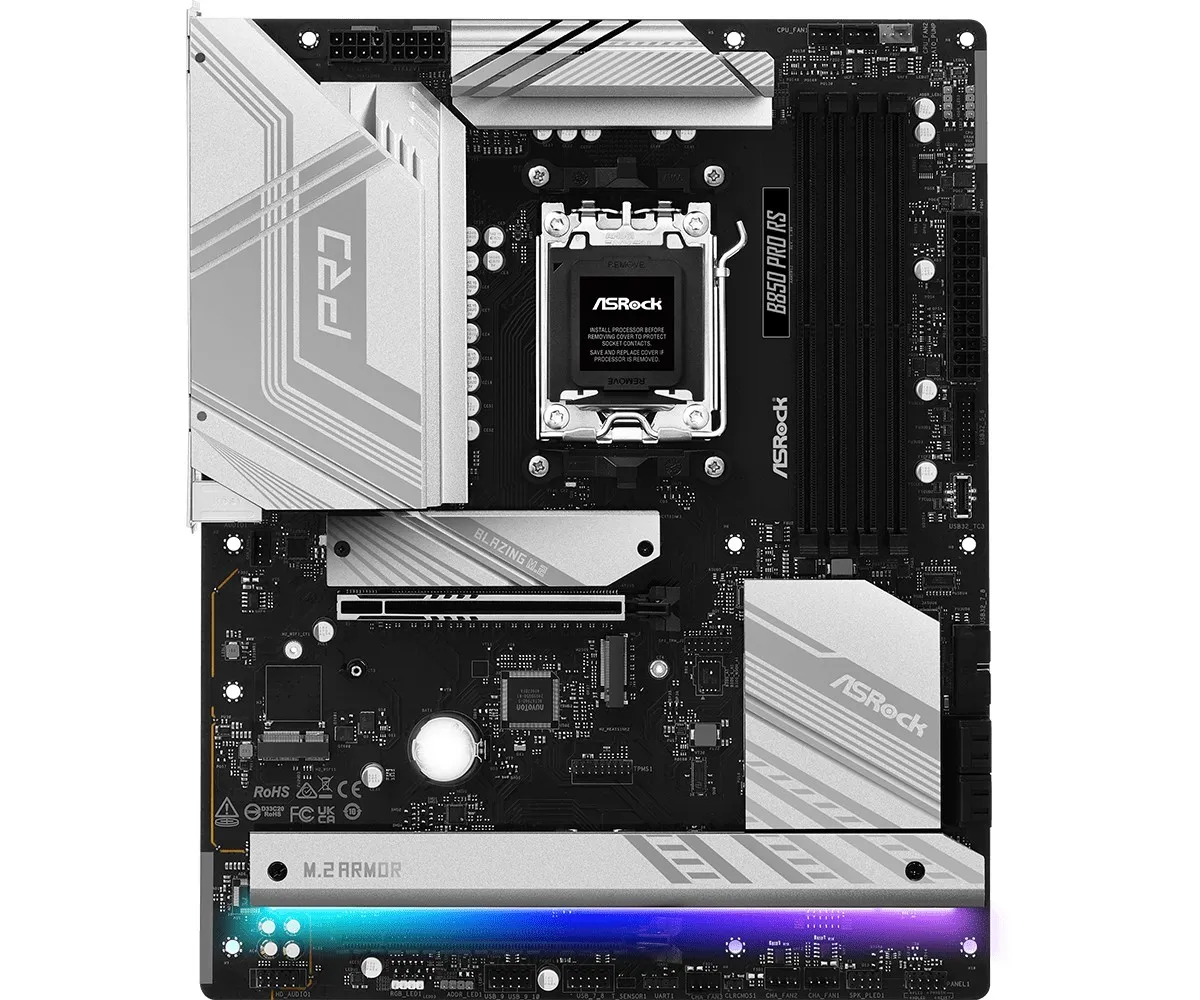

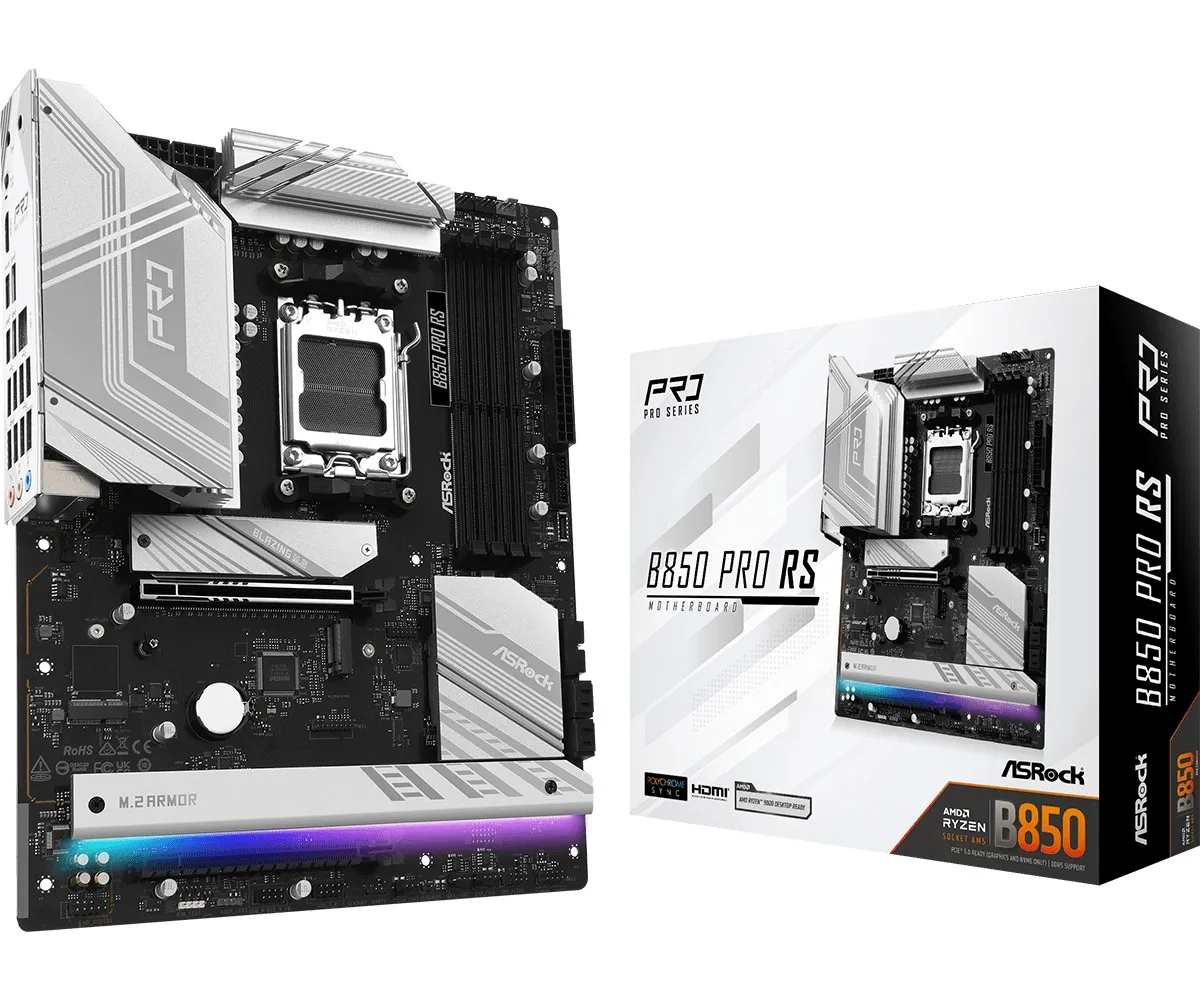

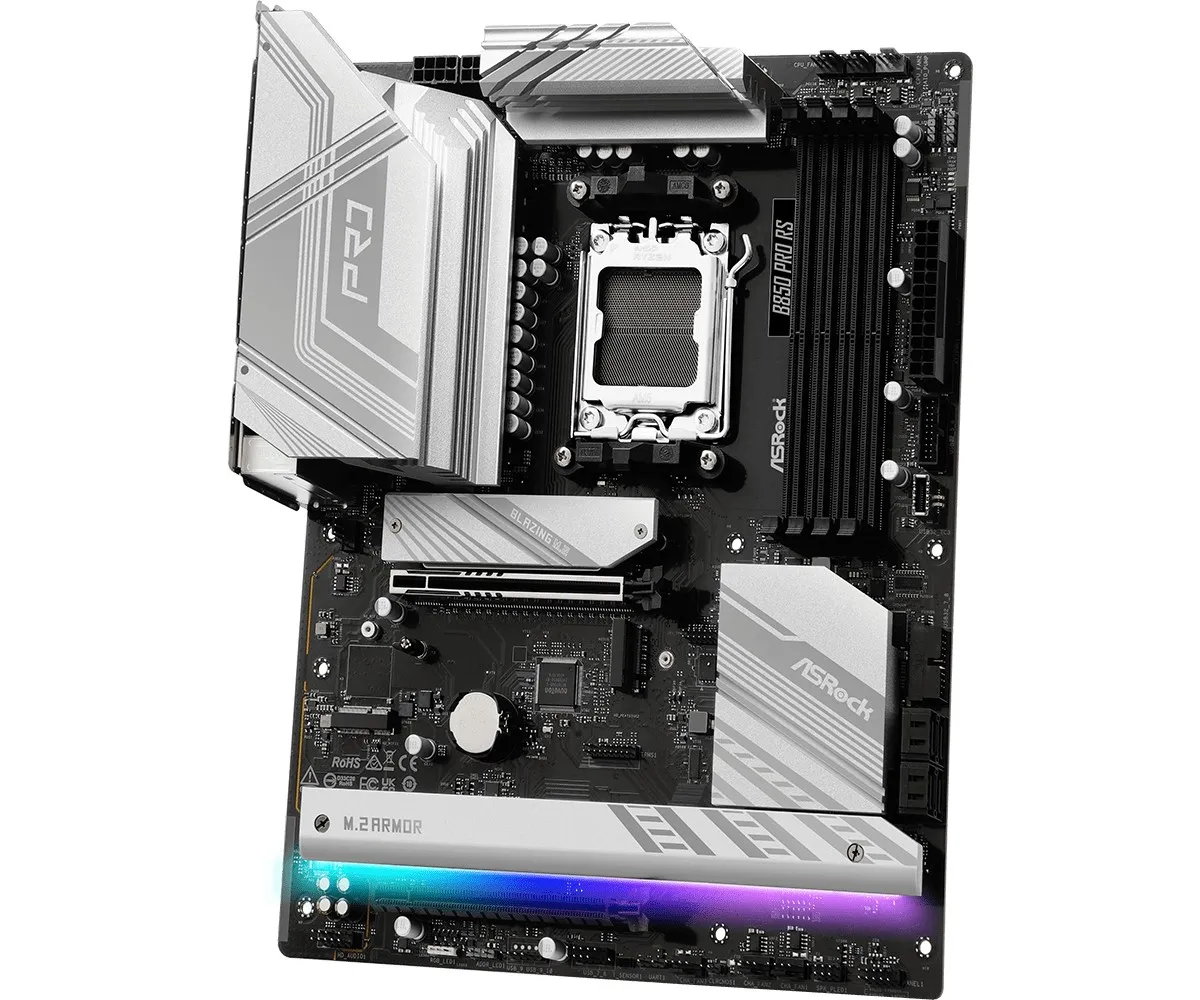

ASRock Płyta główna B850 PRO RS AM5 4DDR5 ATX

B850 PRO RS

AMD B850

Sloty

• CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15 Gold Contact in VGA PCIe Slot (PCIE1)

Magazynowanie

• CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
• 2 x SATA3 6.0 Gb/s Connectors
• ASMedia ASM1061:
• 2 x SATA3 6.0 Gb/s Connectors

RAID

• Supports RAID 0 and RAID 1 for SATA Dyski
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe Dyski

• Integrated AMD RDNA graphics (Wsparcie może się różnić w zależności od CPU)
• 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, supports HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz
• 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. Rozdzielczośćup to 4K 60Hz (DP-alt mode supports DP1.4a)

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

256Mb AMI UEFI Legal BIOS with GUI support

30.5 cm x 24.4 cm

• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• Automatyczny Instalator Sterowników ASRock
• ASRock Funkcja Instant Flash

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
