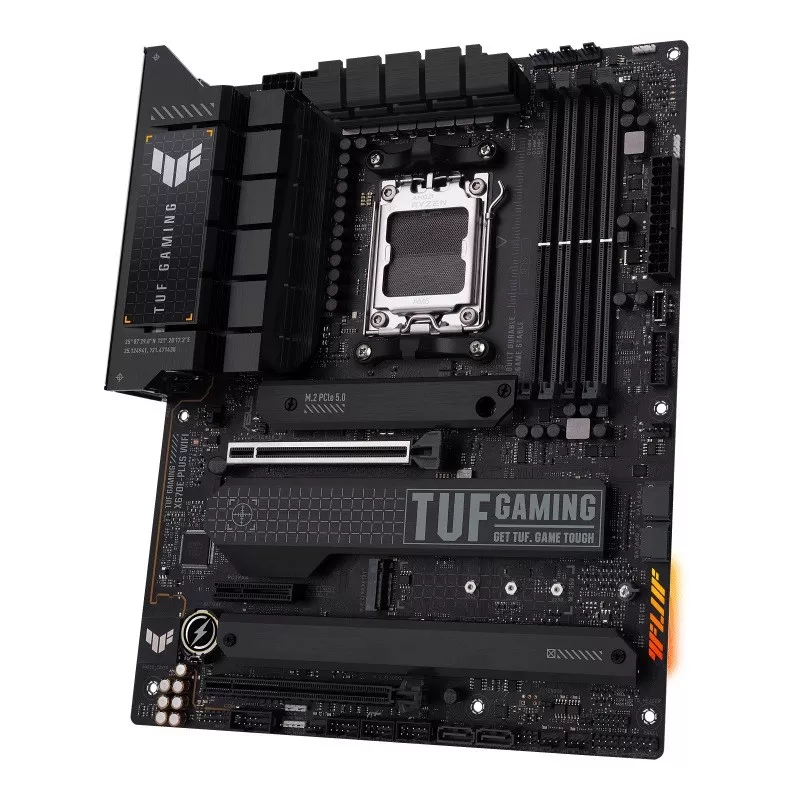

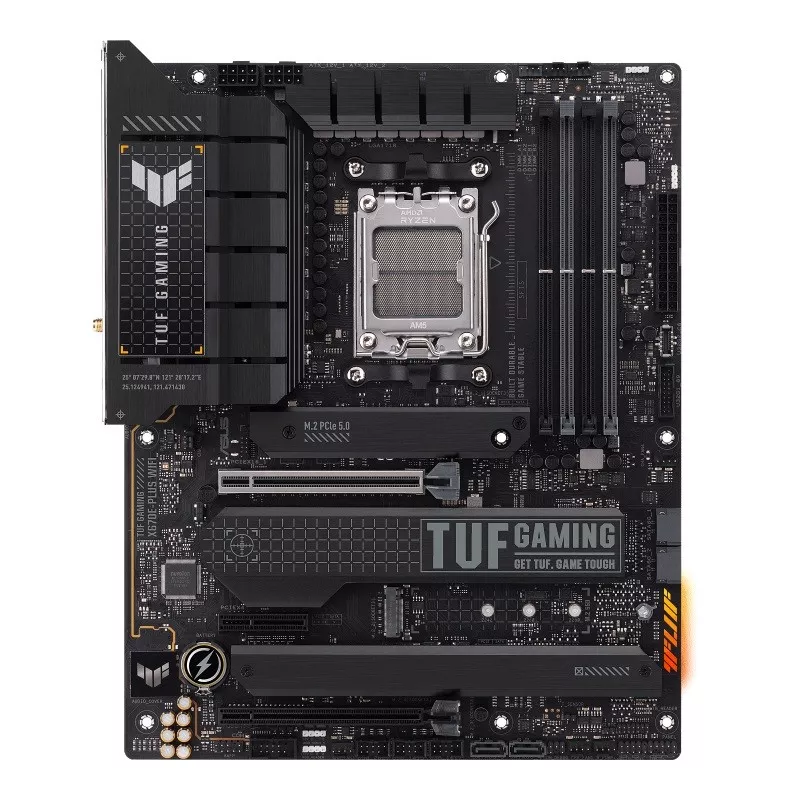

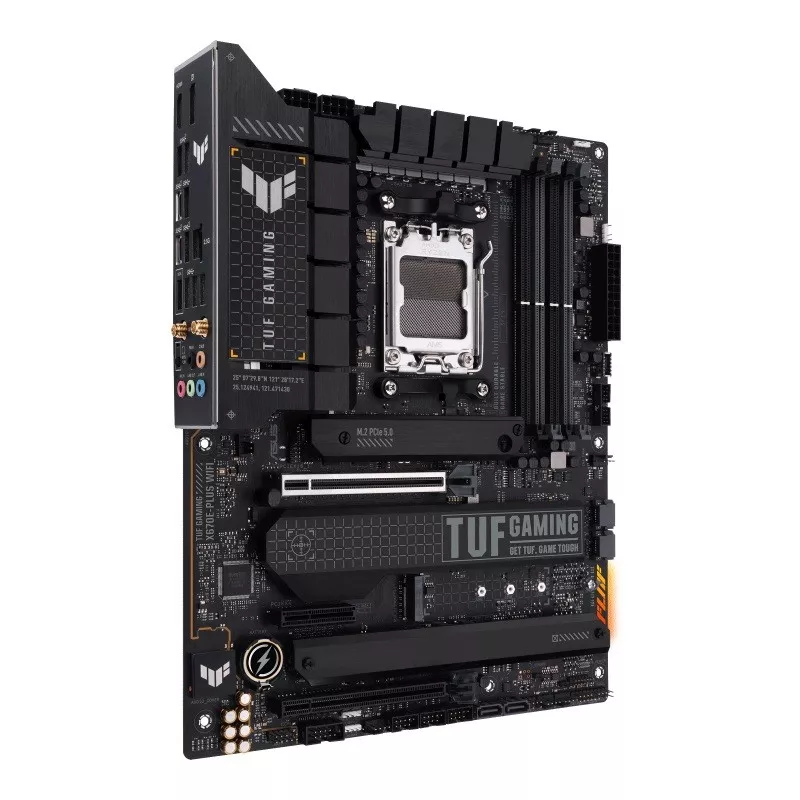

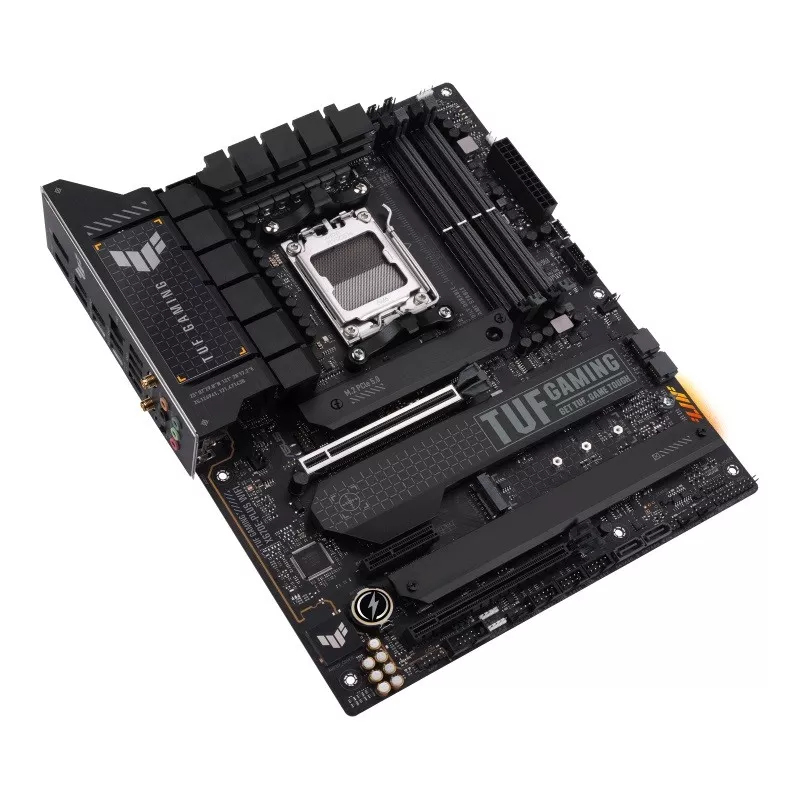

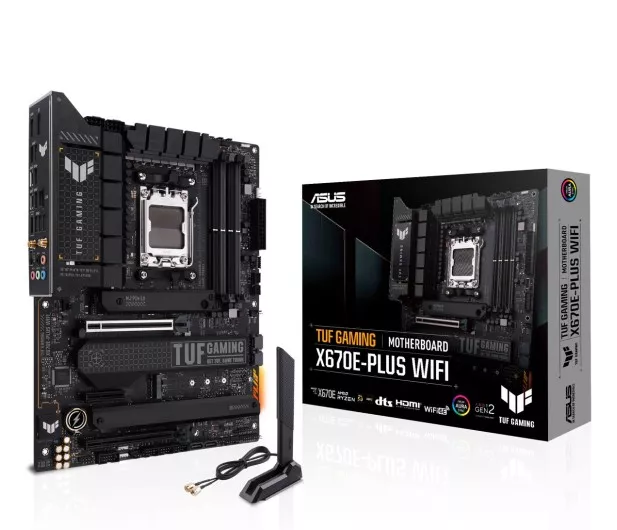

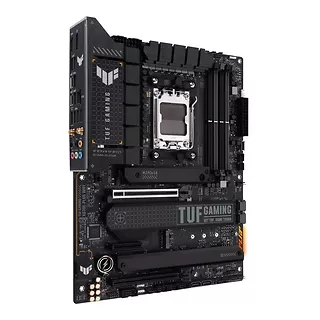

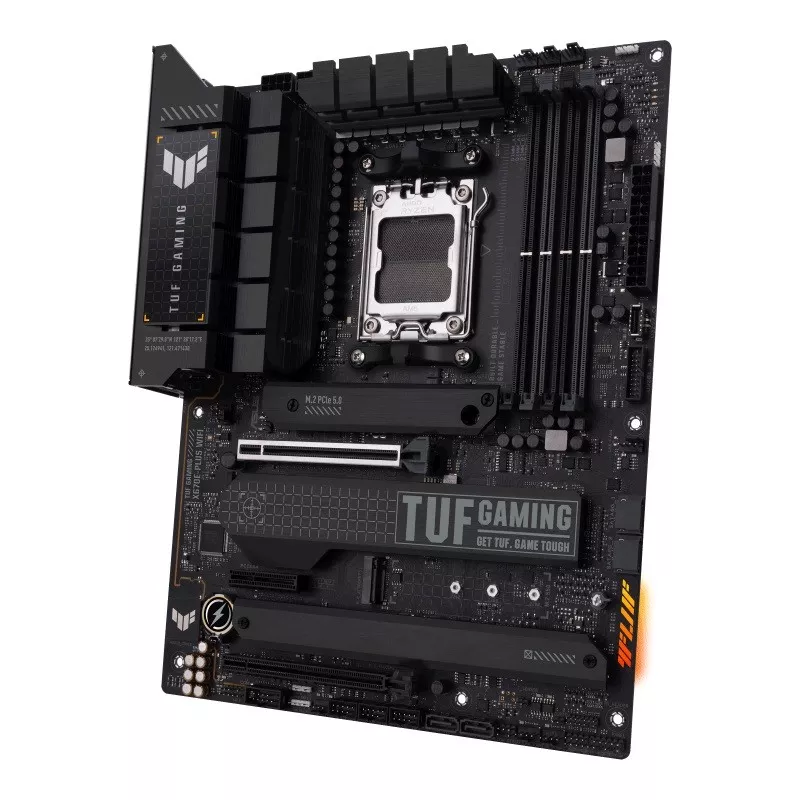

Płyta główna TUF GAMING X670E-PLUS WIFI AM5 4DDR5 ATX HDMI

TUF GAMING X670E-PLUS WIFI

AMD X670

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.

Realtek ALC S1220A

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage Protection
• Safeslot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS header
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

AURA Sync

• AURA RGB header
• Addressable Gen 2 headers

256 Mb Flash ROM, UEFI AMI BIOS

30,5 x 24,4 cm

ASUS Exclusive Software
Armoury Crate

• AURA Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• Two-Way AI Noise Cancellation

AI Suite 3

• Easy Optimization
• DIGI+ VRM
• Turbo app
• PC Cleaner

TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

FlexKey

• 1 x DisplayPort**
• 1 x HDMI port***

* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
