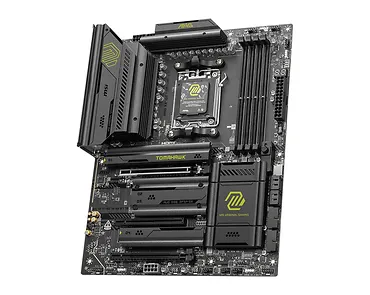

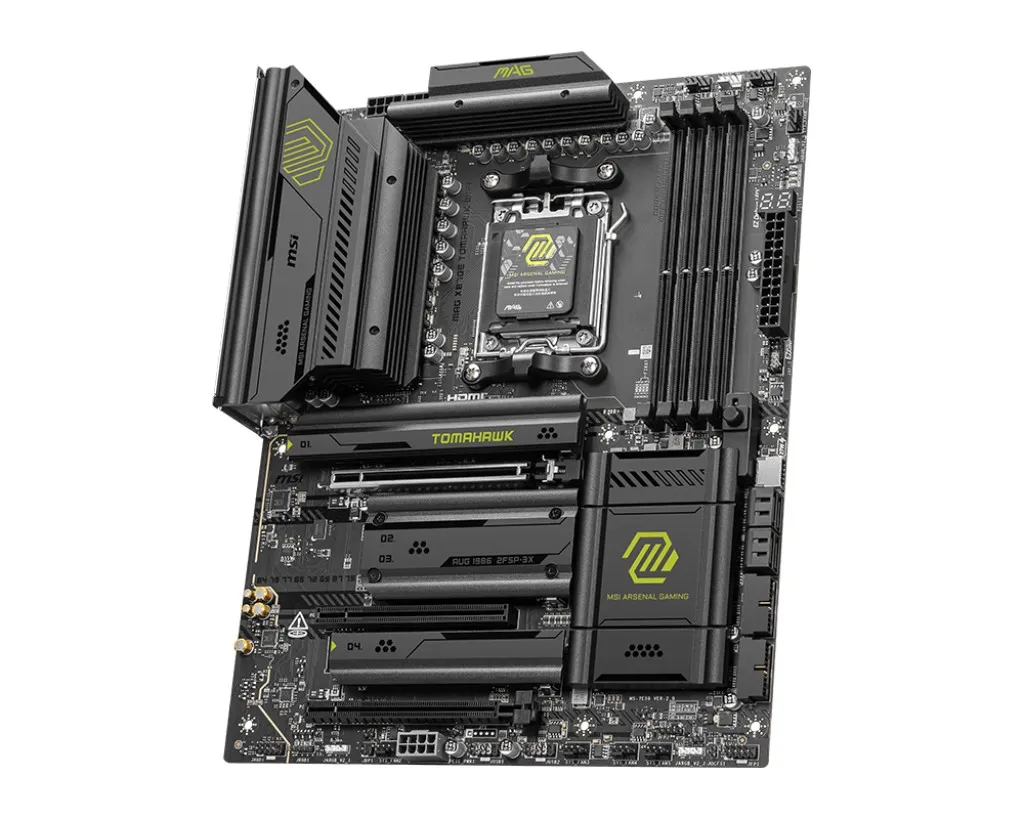

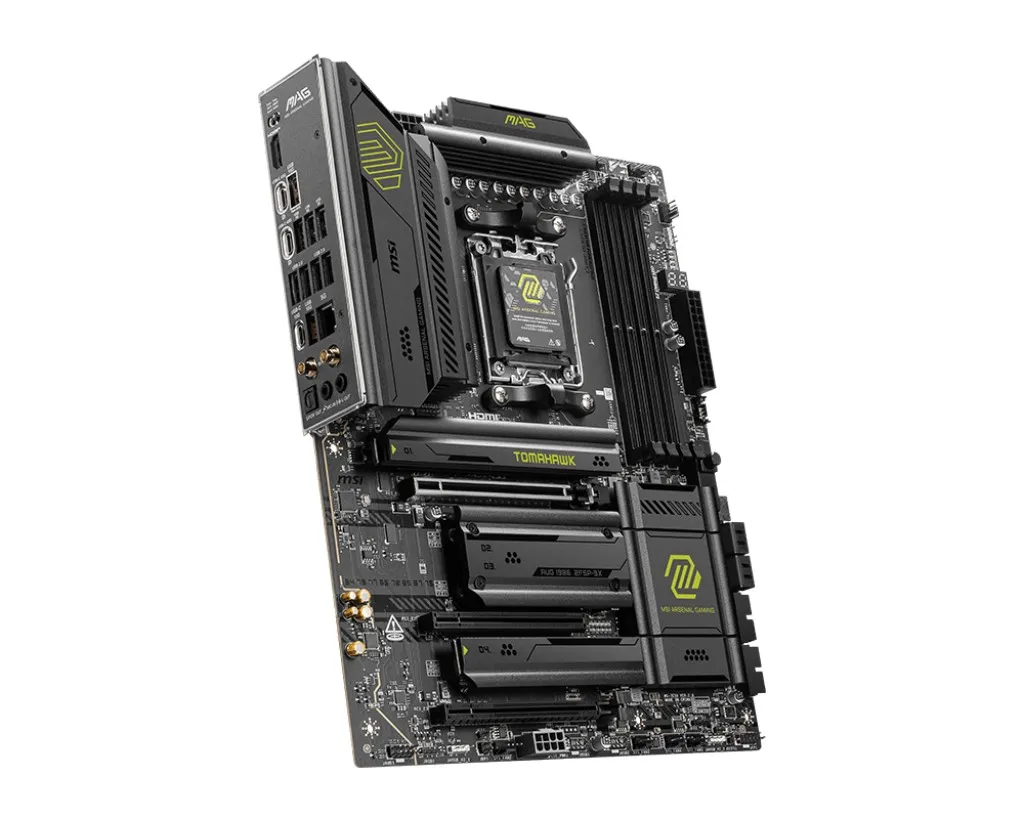

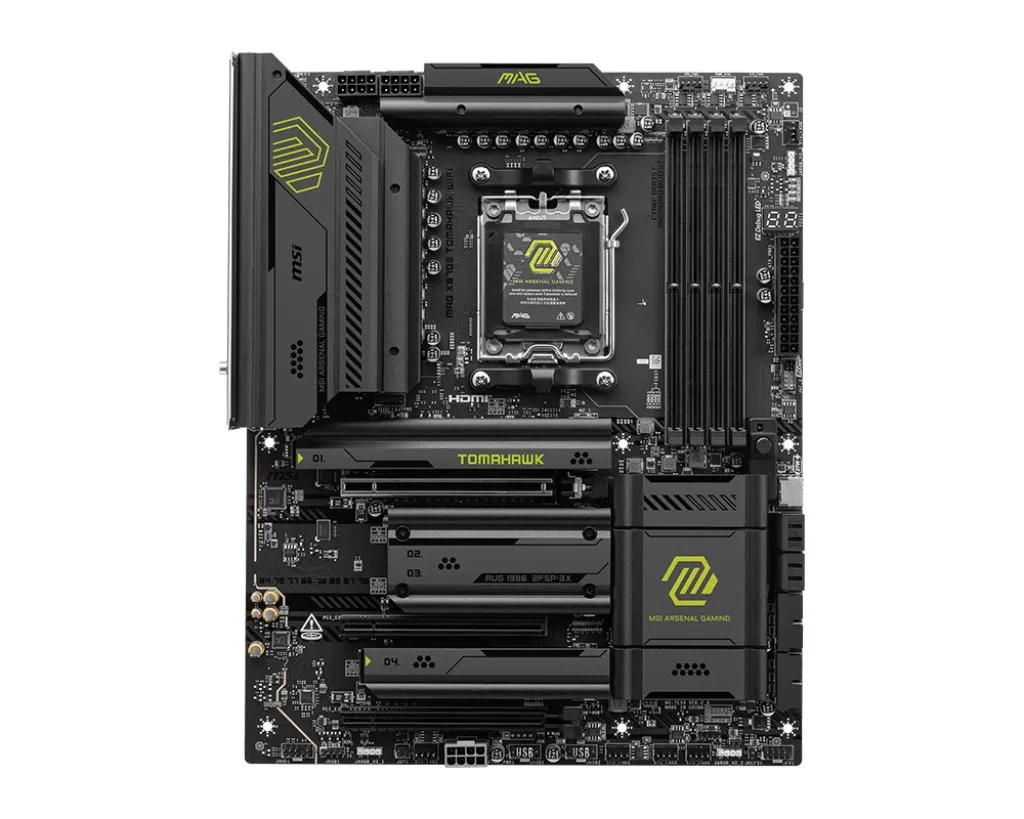

MSI Płyta główna MAG X870E TOMAHAWK WIFI AM5 4DDR5 ATX

MAG X870E TOMAHAWK WIFI

AMD X870E

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M.2_2 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

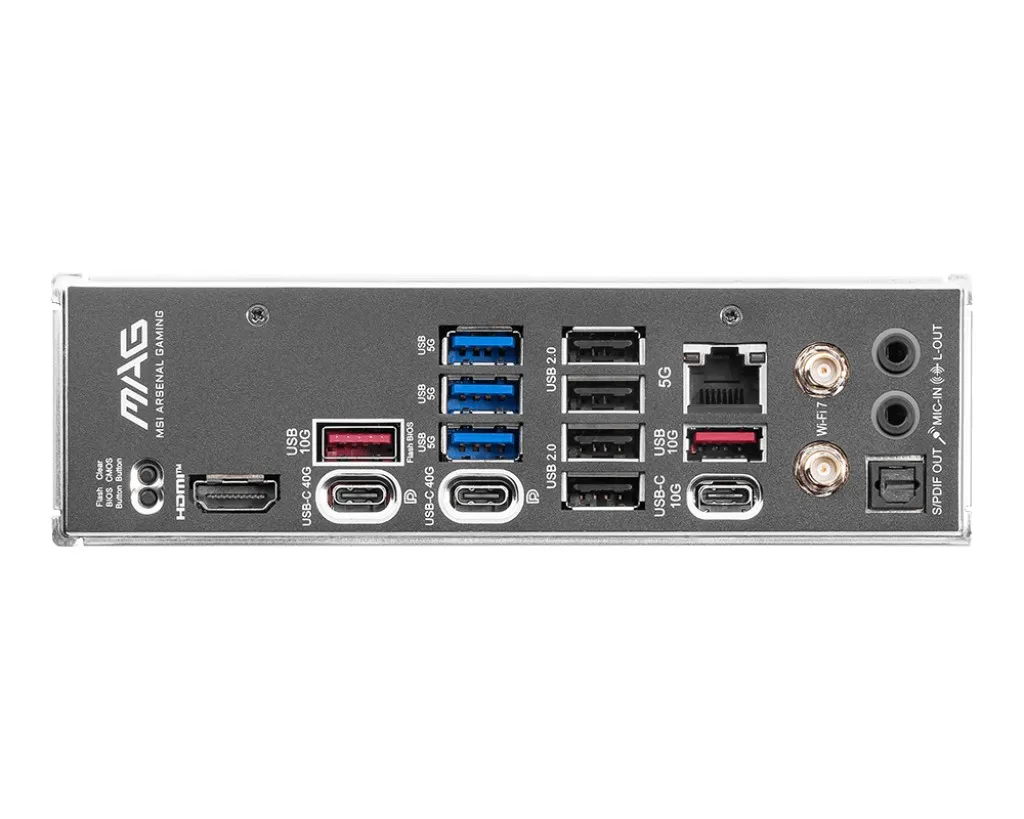

*USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID     Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• 1x HDMI
• Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
• 2x Type-C DisplayPort
• USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

LAN

• 1x Realtek 8126 5G LAN

WIRELESS LAN & BLUETOOTH

• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4**, MLO, 4KQAM

243.84 mm x 304.8 mm
